T400

T400
  • SURFACE RECEIVER UNIT
  • DIFFERENTIAL INPUT
  • SINGLE ENDED OUTPUT
  • GAIN/FILTER SWITCH
  • HEADPHONE OUTPUT

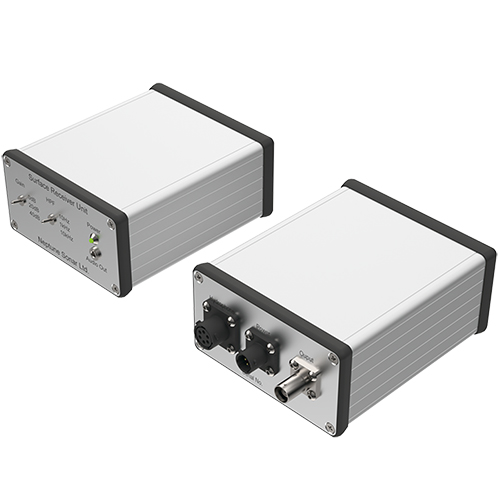

The T400 Surface Receiver is designed to interface to Neptune’s hydrophones that include integral pre-amplifiers.

The hydrophone signal is converted from a differential to single ended output, with a standard BNC connector.

The pre-amplifier has selectable gain options of 0, 20 and 40 dB and high-pass filter options of 10 Hz, 1 kHz and 10 kHz.

Technical Specification

Useful Frequency Range
  • 5 Hz to 500 kHz
Input
  • Differential, 10kΩ Impedance
Power Supply
  • 24 Vdc Nominal
  • (12 to 36 Vdc)
  • 15 mA quiescent, 40 mA with hydrophone
  • 150 mA
  • (max)
  • signal and load dependant
Noise
  • <20nV/√Hz RTI
Output
  • BNC - Single Ended, 50Ω Impedance 3.5mm Jack - Headphones
Gain Settings
  • 0, 20 and 40 dB
High-pass Filter Settings
  • 10 Hz, 1 kHz and 10 kHz
