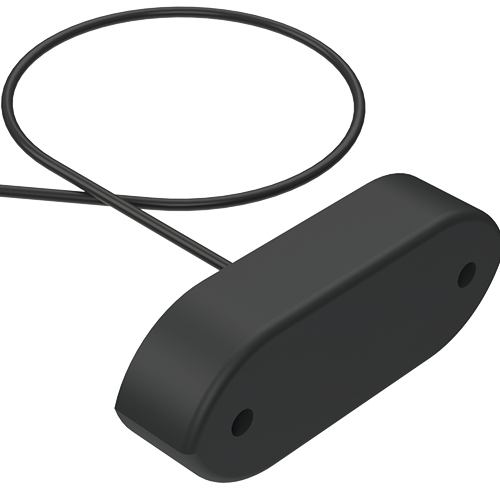

Model 340 Series

Model 340 Series
  • DUAL FREQUENCY TRANSDUCER
  • 30 LF / HF COMBINATIONS
  • HULL OR OVER-SIDE MOUNTING
  • FULLY OVER-MOULDED
  • FISHING, NAVIGATION & SURVEY
  • LOW COST

The 340 SERIES is a high performance over- moulded, dual frequency transducer featuring both high and low frequency sections combined in a single unit.

Compatible with a wide range of echo-sounders the piston elements are configured to achieve optimum echo-sounder performance.

The ability to specify a wide combination of frequencies in the same basic unit, provides the echo sounder manufacturer and operator with the flexibility to configure a system and beam pattern to match the desired survey requirements of resolution, range and silt penetration.

The polyurethane housing provides a mechanically robust, corrosion free transducer, suitable for hull or over-side mounting.

The 340 SERIES is available with or without acoustic calibration, traceable to National Standards. Transducer impedance can be adjusted to suit customers specification.

Technical Specification

Resonant Frequency (Nominal)
  • 33/210 (Other frequency options available, download datasheet)
Beam Pattern
  • 33 kHz Degrees Conical @ 16.5x25
  • 210 kHz Degrees Conical @ 7.5
Bandwidth
  • 3.5 kHz @ 33 kHz
  • 15 kHz @ 210 kHz
Transmit Sensitivity
  • 168 dB re 1μPa/V 1m @ 33 kHz
  • 170 dB re 1μPa/V 1m @ 210 kHz
Receive Sensitivity
  • -175 dB re 1V/μPa @ 33 kHz
  • -193 dB re 1V/μPa @ 210 kHz
Nominal Impedance
  • 100 Ohms
  • 100 Ohms
Transmit Voltage / Duty Cycle (Max)
  • 325 Vrms at 10% @ 33 kHz
  • 175 Vrms at 10% @ 210 kHz

Mechanical Specification

Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 6.4 kg / 1.1 kg
Connector
  • Not fitted as standard
  • (Optional Customer Specific)
Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
Cable Type
  • Ø12mm Polyurethane Jacket, Screened 4 Core
Operating Depth
  • 300m Standard
