T589

T589
  • 1.4KHZ FREE FLOODED RING
  • BROADBAND
  • HIGH POWER
  • OMNI-DIRECTIONAL BEAM PATTERN
  • UNLIMITED DEPTH
  • LONG RANGE TRANSMISSION

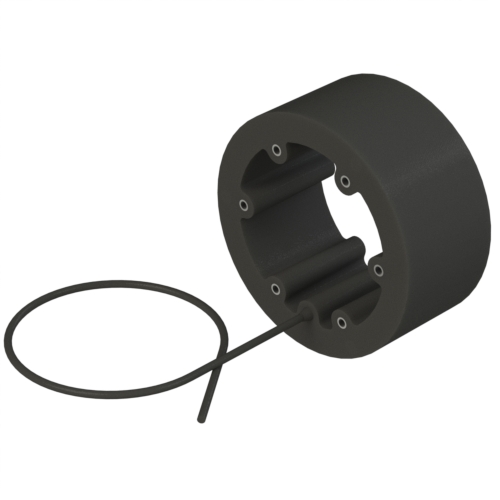

T589 is the latest model in Neptune Sonar's dependable line of Free Flooded Ring (FFR) transducers.

Like it's predecessors, this transducer excels in low frequency, high-power broadband applications and offers lower frequency and significantly higher power capability than the T161.

The T589 is ideal as a high power sound source for low frequency, long range sonar systems and for very long range acoustic communication applications.

It is manufactured with a tried and tested, robust construction capable of operating efficiently in the harshest of deep-sea environments.

Technical Specification

Resonant Frequency (Nominal)
  • 1.4KHz
Beam Pattern Horizontal
  • Omni +/- 2dB
Beam Pattern Vertical
  • Toroidal (see datasheet)
Transmit Sensitivity
  • 143 dB re 1µPa/V @ 1m
Receive Sensitivity
  • -165 dB re 1V/µPa
Capacitance at 1 kHz (with 10m cable)
  • 495nF
Transmit Voltage (Abs. Max)
  • 1500Vrms (Minimum 10m depth)
Transmit Voltage / Duty Cycle (Max)
  • 1500Vrms at 10%
  • 500Vrms at 100%

Mechanical Specification

Operating Depth
  • 2400m
Operating Temperature
  • -4 to +40C
Storage Temperature
  • -40 to +80C
Cable Type
  • Ø13.2mm Polyurethane Jacket, 6 Core
Cable Length
  • 10m Standard
  • (Additional lengths supplied to order)
