T226

T226
  • 58 KHZ CYLINDRICAL TRANSDUCER
  • BROADBAND TRANSMISSION
  • TRANSPONDER
  • RANGE TRACKING
  • COMMUNICATIONS

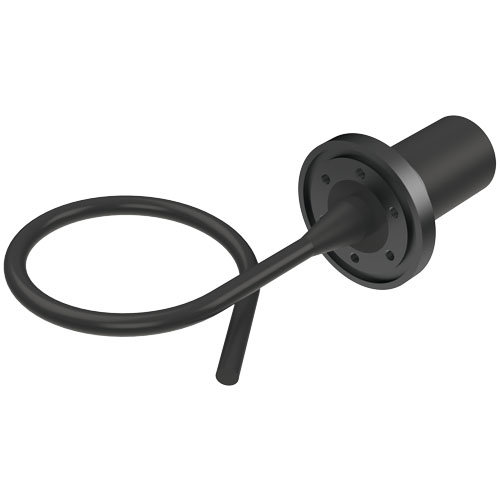

The Type T226 is one of a series of underwater transducers available from Neptune that are designed for use in transponders, beacons, acoustic release mechanisms and data communication systems.

The anodised aluminium base incorporates 6 x M4 tapped holes and an ‘O’ ring seal allowing simple and direct mounting onto equipment or pressure housings.

The T226 is available with or without acoustic calibration which is traceable to National Standards.

Technical Specification

Resonant Frequency (Nominal)
  • 60 kHz
Useful Frequency Range
  • 50 kHz to 70 kHz
Beam Pattern Horizontal
  • Omni ± 2 dB
Beam Pattern Vertical
  • Toroidal (See Graph)
Transmit Sensitivity
  • 140 dB re 1μPa/V @ 1m
Receive Sensitivity
  • -197 dB re 1V/μPa
Capacitance at 1 kHz (with 10m cable)
  • 5,100 pF
Transmit Voltage (Max)
  • 600 Vrms
Transmit Voltage / Duty Cycle (Max)
  • 600 Vrms @ 10%
  • 150 Vrms @ 100%

Mechanical Specification

Weight Air/Water (including 10m cable)
  • 0.17 kg / 0.01 kg
Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
Cable Type
  • Ø7mm Polyurethane Jacket, Screened Twisted Pair
Operating Depth
  • 1500m
Cable Length
  • 1m standard
  • (Additional lengths supplied to order)
