T279

T279
  • HEMISPHERICAL BEAM PATTERN
  • BROADBAND OPERATION
  • DEEP WATER CAPABILITY
  • TRANSPONDER
  • RANGE TRACKING COMMUNICATIONS

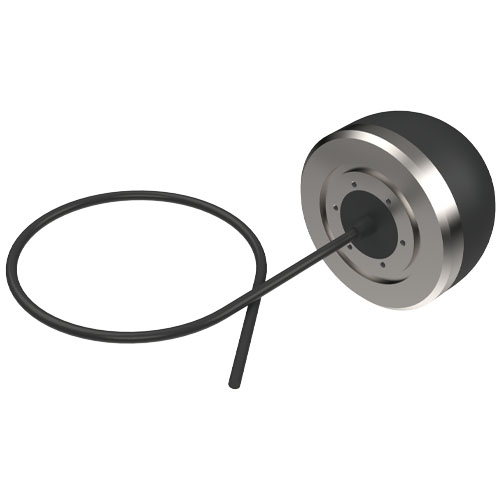

The T279 is one of a group of transducers available from Neptune that have been designed for use in transponder beacons, tracking systems, acoustic release mechanisms and data communication systems.

A versatile transducer, the T279 combines efficient broadband transmission and reception with a hemispherical beam pattern.

The transducer is moulded onto a stainless steel base which achieves a design that is compact and robust.

The T279 is available with or without acoustic calibration, traceable to National Standards.

Technical Specification

Resonant Frequency (Nominal)
  • 15 kHz
Useful Frequency Range
  • 12 kHz to 19 kHz
Beam Pattern
  • Conical (See Graph)
Transmit Sensitivity
  • 156 dB re 1μPa/V @ 1m
Receive Sensitivity
  • -173 dB re 1V/μPa
Capacitance at 1 kHz (with 10m cable)
  • 37,000 pF
Transmit Voltage (Abs. Max)
  • 750 Vrms
Transmit Voltage / Duty Cycle (Max)
  • 750 Vrms @ 10%
  • 225 Vrms @ 100%

Mechanical Specification

Cable Type
  • Ø9mm Polyurethane Jacket, Screened Twisted Pair
Operating Depth
  • 6000m
Cable Length
  • 1m standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 5.5 kg / 3.4 kg
Connector
  • Not fitted as standard
  • (Optional Customer Specific)
Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
