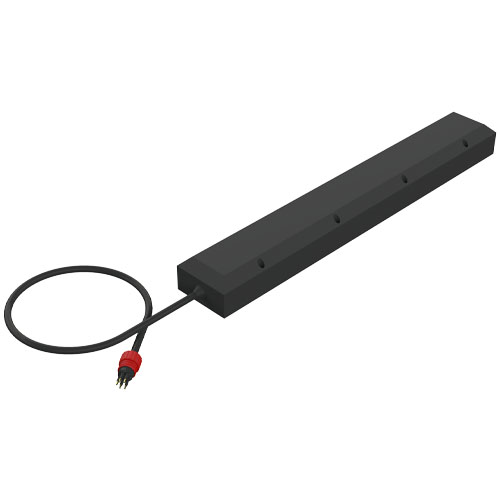

Model 230 Series

Model 230 Series
  • FREQUENCY 115/500 KHZ
  • SIDESCAN TRANSDUCER
  • SEAFLOOR MAPPING
  • DEEP WATER CAPABILITY
  • AUV, HULL OR TOW-FISH

The dual frequency 230 SERIES sidescan is a robust fully moulded construction, operating at 115 and 500 kHz the sidescan has a very wide bandwidth.

With a narrow beam in the along-track axis and wide beam in the across- track axis, suitable for most sea-floor mapping and other high directivity applications.

The company’s extensive transducer expertise has created products that are of high performance and substantially lower cost. A deep-water version, capable of operating down to 2000 metres is available to special order.

The 230 SERIES is available with or without acoustic calibration which is traceable to National Standards.

Technical Specification

Frequency Options
  • 115/500 kHz
Beam Pattern Horizontal
  • 1.5 Degrees @ 115 kHz
  • 0.4 Degrees @ 500 kHZ
Beam Pattern Vertical
  • 50 Degrees at 115 & 500 kHz
Bandwidth
  • 40 kHz @ 115 kHz
  • 100 kHz @ 500 kHZ
Transmit Sensitivity
  • 178 dB re 1uPa/V 1m @ 115 kHz
  • 173 dB re 1uPa/V 1m @ 500 kHZ
Receive Sensitivity
  • -183 dB re 1V/uPa @ 115 kHz
  • -204 dB re 1V/uPa @ 500 kHZ
Transmit Voltage / Duty Cycle (Max)
  • 500 Vrms at 10% @ 115 kHz
  • 300 Vrms at 10% @ 500 kHZ

Mechanical Specification

Cable Type
  • Ø8mm Chloroprene Rubber
  • (Optional Ø9mm Polyurethane, Screened Twisted Pair)
Operating Depth
  • 600m Standard
  • (Optional 2000m – both may require an export license)
Cable Length
  • 0.2m standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 3.9 kg / 1.8 kg
Connector
  • SubConn MCIL5M with MCDLS-M Locking Sleeve
Operating Temperature
  • -5 to +40 °C
Extension cable/connector
  • Ø9mm Polyurethane, Screened Twisted Pair with SubConn MCIL5F with MCDLS-F Locking Sleeve
Storage Temperature
  • -40 to +80 °C
