D/300/H

D/300/H
  • INTEGRAL PRE-AMPLIFIER
  • MAXIMUM CABLE LENGTH 100M
  • OMNI-DIRECTIONAL RESPONSE
  • LOW NOISE PERFORMANCE
  • BROADBAND OPERATION
  • MARINE MAMMAL AUDIO SENSOR

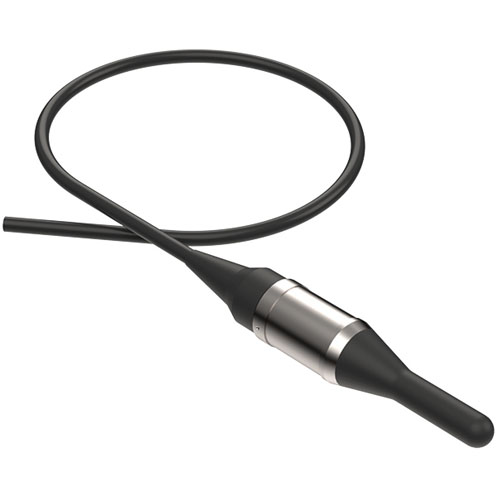

The D/300/H is a true spherical balanced element combined with a low noise differential pre-amplifier.

Signals can be transmitted along cable lengths up to 100m, without any degradation. The pre-amplifier gain options of 20, 30 and 40 dB (are pre-set during manufacture) to suit the customer requirements.

A differential to single ended Surface Receiver (Model T400) which includes additional filter and gain settings, can be supplied separately.

The D/300/H is available with or without acoustic calibration, traceable to National Standards.

Accessories are available for this product - click here to see our range.

Technical Specification

Resonant Frequency (Nominal)
  • 300 kHz
Useful Frequency Range
  • 10 Hz to 450 kHz
Beam Pattern Horizontal
  • Omni ±2 dB @ 150 kHz
  • Omni ±3 dB @ 300 kHz
Beam Pattern Vertical
  • 240° ±3 dB at 300kHz
Receive Sensitivity
  • -192 dB re 1V/μPa with 20dB gain
  • -182 dB re 1V/μPa with 30dB gain
  • -172 dB re 1V/μPa with 40dB gain
  • (Gain is pre-set and cannot be adjusted)
Power Supply
  • +20 to +30 Volts dc @ <100mA
  • 25mA quiescent, 100mA
  • (Max)
Noise
  • <3nV/√Hz RTI
Output
  • Differential, 100Ω Impedance

Mechanical Specification

Cable Type
  • Polyurethane Ø8mm Twisted Pair (power) and Screened Twisted Pair
  • (signal)
Operating Depth
  • 700m Standard
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 0.72 kg / 0.16 kg
Connector
  • Not fitted as standard
  • (Souriau type if used with T400 Surface Receiver)
Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
