T257

T257
  • 24 KHZ CYLINDRICAL TRANSDUCER
  • BROADBAND TRANSMISSION
  • TRANSPONDER
  • RANGE TRACKING
  • COMMUNICATIONS

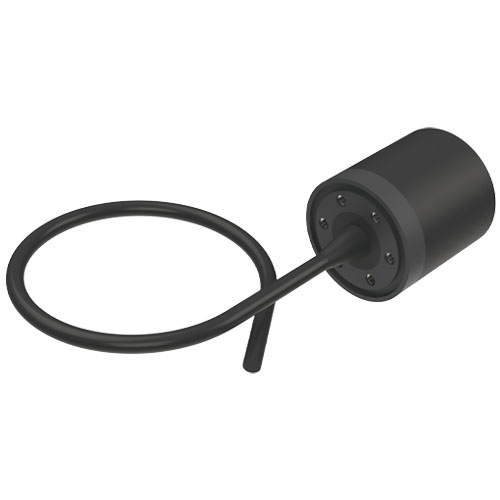

The Type T257 is one of a series of underwater transducers available from Neptune that are designed for use in transponders, beacons, acoustic release mechanisms and data communication systems.

The nylon base incorporates threaded fastenings and an 'O' ring seal allowing simple and direct mounting onto equipment or pressure housings.

The T257 is available with or without acoustic calibration which is traceable to National Standards.

Technical Specification

Resonant Frequency (Nominal)
  • 24 kHz
Useful Frequency Range
  • 16 kHz to 30 kHz
Beam Pattern Horizontal
  • Omni ± 2 dB
Beam Pattern Vertical
  • Toroidal (See Graph)
Transmit Sensitivity
  • 136 dB re 1μPa/V @ 1m
Receive Sensitivity
  • -190 dB re 1V/μPa
Capacitance at 1 kHz (with 10m cable)
  • 12,000 pF
Transmit Voltage (Max)
  • 600 Vrms
Transmit Voltage / Duty Cycle (Max)
  • 600 Vrms @ 10%
  • 180 Vrms @ 100%

Mechanical Specification

Cable Type
  • Ø7mm Polyurethane Jacket, Screened Twisted Pair
Operating Depth
  • 2000m
Cable Length
  • 1m standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 0.78 kg / 0.25 kg
Connector
  • Not fitted as standard
  • (Optional Customer Specific)
Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
