D/70

D/70
  • OMNI-DIRECTIONAL RESPONSE
  • LOW NOISE PERFORMANCE
  • ACOUSTIC REFERENCE STANDARD
  • BROADBAND OPERATION
  • AIR GUN & BOOMER MONITOR
  • MARINE MAMMAL AUDIO SENSOR

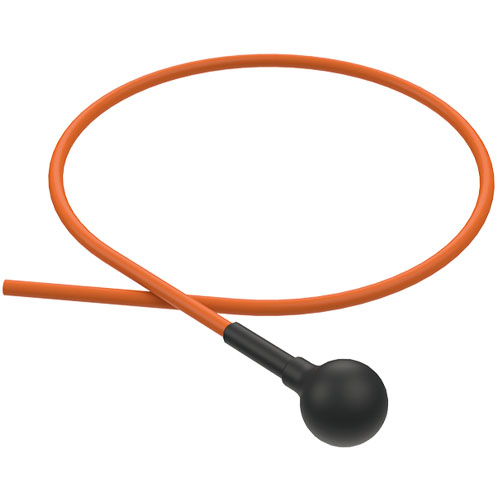

The all moulded construction and inherent strength of the PZT ceramic sphere achieves a robust, light weight, corrosion free design making it the ideal choice as a monitor hydrophone for air gun, boomer and other environments where high levels of shock are experienced.

The D/70 is available with or without acoustic calibration, traceable to National Standards.

Technical Specification

Resonant Frequency (Nominal)
  • 70 kHz
Useful Frequency Range
  • 10 Hz to 100 kHz
Beam Pattern
  • Omni ± 2 dB up to 80 kHz
Transmit Sensitivity
  • 148 dB re 1μPa/V @ 1m
Receive Sensitivity
  • -199 dB re 1V/μPa
Capacitance at 1 kHz (with 10m cable)
  • 9,900 pF
Transmit Voltage (Abs. Max)
  • 100 Vrms
Transmit Voltage / Duty Cycle (Max)
  • 100 Vrms @ 10%
  • 30 Vrms @ 100%

Mechanical Specification

Storage Temperature
  • -40 to +80 °C
Cable Type
  • Polyurethane Ø7mm Low Noise Coaxial
  • (Optional Ø7mm Polyurethane Screened Twisted Pair)
Operating Depth
  • 900m Standard
  • (Optional 1500m – may require an export license)
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 0.64 kg / 0.23 kg
Connector
  • Not fitted as standard
  • (Optional BNC or Customer Specific)
Operating Temperature
  • -5 to +40 °C
