T197

T197
  • DUAL FREQUENCY NAVIGATION & SURVEYING
  • LOW SIDE LOBES
  • LONG RANGE ECHO SOUNDER
  • TOWED BODY CAPABILITY
  • FULLY OVER-MOULDED
  • (OPTIONAL) DEEP-WATER 1800M VARIANT AVAILABLE

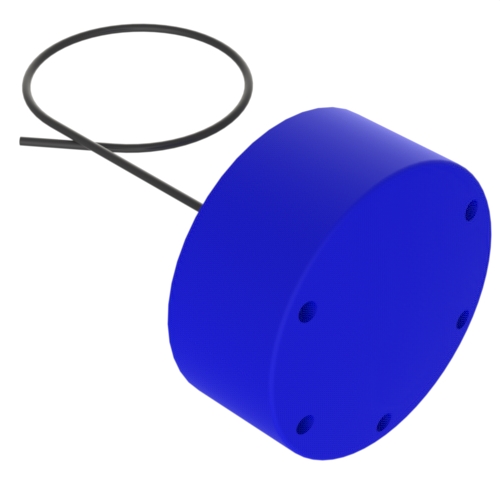

The T197 is a high performance, dual-frequency transducers offering a versatile sounding system with high resolution and excellent range performance. The design features both high and low frequencies combined within a single over-moulded housing. Allowing a hydrographer the flexibility to select a system to meet the desired survey requirements of resolution, range, silt penetration and beam pattern. The over-moulded polyurethane housing provides a mechanically robust, corrosion-free transducer for hull or over-side mounting.

Transducer impedance can be adjusted to suit the customer's specification.

The T196 is available with or without acoustic calibration which is traceable to National Standards.

Technical Specification

Frequency Options
  • 12/200kHz
Beam Angle (-3db)
  • 20 Degrees Conical @12
  • 200 Degrees Conical @200
Bandwidth
  • 1.5 kHz@ 12 kHz
  • 20 kHz @ 200 kHz
Transmit Sensitivity
  • 167 dB re 1μPa/V 1m @ 12kHz
  • 175 dB re 1μPa/V 1m @ 200kHz
Receive Sensitivity
  • -173 dB re 1V/μPa @12kHz
  • -186 dB re 1V/μPa @ 200kHz
Nominal Impedance
  • 100 Ohms
Transmit Voltage / Duty Cycle (Max)
  • 750 Vrms at 10% @ 12 kHz
  • 175 Vrms at 10% @ 20 kHz

Mechanical Specification

Storage Temperature
  • -40 to +80 °C
Cable Type
  • Ø12mm Polyurethane Jacket, Screened 4 Core
Operating Depth
  • 300m Standard
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 33.6 kg / 14 kg
Connector
  • Not fitted as standard
  • (Optional Customer Specific)
Operating Temperature
  • -5 to +40 °C
