T37

T37


Product Unavailable

This product has been discontinued. Please see it's replacement product, the Model 122 Series.

  • 200 KHZ DUAL BEAM
  • NAVIGATION, FISHING & SURVEYING
  • HIGH PERFORMANCE
  • SCIENTIFIC ECHO SOUNDER
  • HULL OR TOWED BODY
  • ROBUST NYLON HOUSING

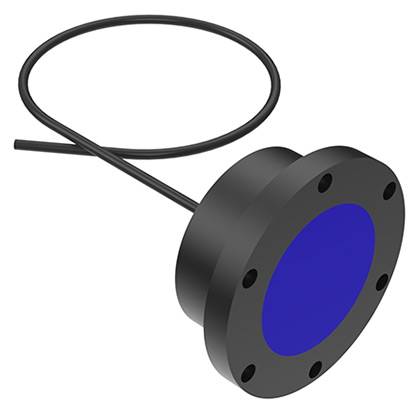

The T37 is a precision echo sounder transducer designed for use in hydrographic or scientific applications where accurately defined beam patterns are needed.

The pattern is configured to achieve conical beams both for wide and narrow beam widths and are switched using a beam selection switch box which can be supplied separately.

The T37 is available with or without acoustic calibration which is traceable to National Standards.

Transducer impedance can be adjusted to suit customers specification.

Technical Specification

Frequency Options
  • 200kHz
Beam Pattern
  • Wide/ Narrow
Beam Pattern Horizontal
  • (-3db) 6.0 Degrees Conical @ Wide
  • (-3db) 3.1 Degrees Conical @ Narrow
Bandwidth
  • 10 kHz
Transmit Sensitivity
  • 177 dB re 1μPa/V 1m @ Wide
  • 178 dB re 1μPa/V 1m @ Narrow
Receive Sensitivity
  • -188 dB re 1V/μPa @ Wide
  • -188 dB re 1V/μPa @ Narrow
Nominal Impedance
  • 50 Ohms
Transmit Voltage / Duty Cycle (Abs. Max)
  • 300 Vrms at 10% @ Wide
  • 400 Vrms at 10% @ Narrow

Mechanical Specification

Weight Air/Water (including 10m cable)
  • 6.1 kg / 1.2 kg
Connector
  • Not fitted as standard
  • (Optional Customer Specific)
Operating Temperature
  • -5 to +40 °C
Optional
  • Beam Selection Switch Box
Storage Temperature
  • -40 to +80 °C
Cable Type
  • Ø12mm Polyurethane Jacket, Screened 4 Core
Operating Depth
  • 300m Standard
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
